Working principles of Capacitive touch panel manufacturer

What is meant by capacitive touch panel manufacturer?

The company was founded in 2011 by specializing in technology in the production industry; it is known for developing different types of high-quality capacitive touch screens. These are some typical characteristics of the capacitive panel. Everyone is aware of the popularity of capacitive touch panels.

Everything That You need to know about capacitive touch panel:

Capacitive touch displays are powered by electrical charges. When a finger or specialized input device made up of atoms with positive and negative charges comes into contact with the collection, an electrical field disturbance is detected, and the order is executed.

Capacitive touch panel manufacturer have made up of copper coatings that store electrical charges in an electrostatic network of cables that is diluter than a human hair. Capacitive control displays work by adjusting electric fields and the effect they have on capacitance.

But do you know how they function or what materials they are comprised of?

They are well-known capacitive touch panel architectures, materials, and fundamental technologies. The essential components of a capacitive panel are discussed in given below.

What is meant by a touch panel?

Simply defined, touch panels, often known as touchscreens or touch monitors, are devices that enable users to manage computers by direct touch. More specifically, a user’s touch is sensed using internal sensors and turned into an instructional command that translates into a visual function.

The Various Touch Panel Types:

When it comes to the technical side of things, touch panels are not as simple as they appear. In fact, depending on their intrinsic designs, the way they feel and respond to touch might vary considerably.

• Touch Resistant

Resistive touch panels are low-cost alternatives that detect commands by applying pressure to the screen. This pressure sensitivity is often confined to single-point touch, with a maximum screen size of 20 inches, which is enough for many applications. These include everything from styluses to fingers. As a result, if appropriately utilized, resistive touch screens will continue to operate even if a water drop falls on the screen.

• Touch infrared

Some people enjoy it heated, while others do not. Infrared touch panels are unquestionably in the second group. Touch is sensed by creating a grid of infrared beams over the panel, which may be up to 150 inches in length.

Although infrared touch screens are long-lasting and provide multi-touch capabilities, there is one possible disadvantage depending on your vantage point.

• Optical Imaging Touch

Light, and its disruption, are an excellent approach not only to creating a shadow but also to constructing a touch panel type. To make use of this idea, optical imaging touch panels are intended to detect touch through infrared cameras and light strip disruption. This may be accomplished with any input you choose, from gloves to bare hands and beyond, over its 100-inch maximum size.

• Projected Capacitive touch

The panel is noted for its excellent accuracy and fast reaction times due to its electrical-based touch sensing. Furthermore, they have multi-touch capabilities and may be employed in small, compact, but pricey gadgets.

Manufacturer and working principles of capacitive touch panel:

They start with the cover window, which can be constructed of glass or synthetic material. PMMA and polycarbonate are the most used synthetic components. Chemically toughened glass and thermally tempered glass are the most used glass materials. The application determines the material of the cover window, which should be considered throughout the design phase.

A Visual Adhesive also links the cover window to the touch panel. Typical adhesive kinds are loca and oca. Unique adhesives differ from one another based on their physical condition and a curative procedure. The panel might be made of crystal.

Components of capacitive touch panel:

The main components of capacitive touch panel manufacturer are given below and discussed briefly:

Cover the Window:

The protection window, called cover glass, helps as both powered defense and an enhancing feature for the entire component. The protection space is usually collected of crystals. The typical depths of protection crystals are 0.55 to 1.8mm.

A typical phenomenon in the crystal is a faint green tinge of the substance. It is most noticeable around the screen’s edge. This is due to the presence of iron oxides. This effect must be avoided in some circumstances by means of ultra-clear crystal.

Another consideration is the safety of the crystal. This characteristic is accomplished during the post-production phase by reinforcing the crystal. Chemically strengthening (up to 3mm) and thermal tempering are the most common performances (performed for glass thicker than 3mm).

 Thermally treated glass is measured harmless since it fractures into tiny, rough shards that are not harsh. The final stage in ensuring the security of the crystal is to cut the limits of the protection crystal. This coating guards the boundaries against grazes and dings.

By way of stated in the preceding passage, synthetic materials like PMMA or polycarbonate can be used instead of glass. The cover materials used are appropriate for the working circumstances and the surroundings.

Touch sensor:

Regardless of the material used for the cover window, the sensors are built with two dielectrically separated layers of ITO. These coatings are organized in perfect positions that are vertical to one another, creating a medium. The functionality is obtained by glancing at each alliance and recognizing high capacitance lines. The junction of those outlines determines the position:

The CTP control boards:

The sensor terminates with the electrodes; a controller is required to gather and manage data from the electrodes. The controller should be chosen in accordance with the module’s application and the circumstances in which it will be utilized. There are several things that must be considered. The very first stage is communiqué the boundary for the touch section must be configured.

Following that, the size, efficiency, and safety of the control board should be evaluated. In such a case, electromagnetic compatibility should be investigated.

The IC might accomplish a variety of functions that must meet the criteria of the application. The IC for aquatic presentation or saline underwater atmosphere may be found as exemplary as those enabling at work in scarfs and unique motions.

Significant characteristics of capacitive touch panels that make them famous:

Some essential characteristics of capacitive touch panel manufacturer are more popular, which are discus given below:

• Anti-Glare (AG)

Anti-glare touch panels create tiny surface asperities that improve screen vision in intense light or outside. It is made using the chemical-based surface treatment and controlled acid etching.

• AR (Anti-Reflective)

An anti-reflective panel reduces reflections by applying an optical coating to the surface. It decreases reflection through the vacuum evaporation process. Because less light is wasted owing to reduced reflection, this approach can also enhance efficiency in standard imaging systems.

• Anti-Fingerprint (AF)

An anti-fingerprint coating prevents smearing and fingerprints from being imprinted on the surface of a screen. The AF surface allows for rapid smudge removal on the touch panel, making it easier to clean and more visually pleasing. The AFP coating has a hydrophobic surface.

• Wet Functionality

Wet functionality refers to the capacitive touch panel’s ability to respond to finger touches even when the screen is wet. The touch panel may fail to respond to moist hands owing to electrostatic field distortion. On the other hand, the capacitive touch panel has a sensor that indicates whether the screen is wet or dry. It transitions from single-finger touch to multi-finger touch based on damp and dry touch and reduces false signals.

• Gloved Use

 While capacitive touch screens cannot be used with gloves, some are suitable with coated gloves. The conductivity of the coating on the gloves may alter the electric field on the panel surface. Coated gloves might impact screen performance depending on fingertip pressure or duration.

Advantages of capacitive touch panel:

Looks cleaner and brighter

Capacitive touch panels employ glass substrates, which have more transparency than resistive touch panels’ plastic films. In addition, optical bonding and glass surface treatment give CTP high picture quality and contrast.

Better Human-Machine Interaction

It allows touch gestures and multi-touch, resulting in a significantly better touch user experience.

Incredible toughness

Because the cover glass is utilized in front, which may be highly hard (>9H), it is exceptionally robust for touch and can withstand over 10 million touches. It also resists scratches and is simple to clean, making it a popular choice for resistive touch displays.

Dimensions and Appearance

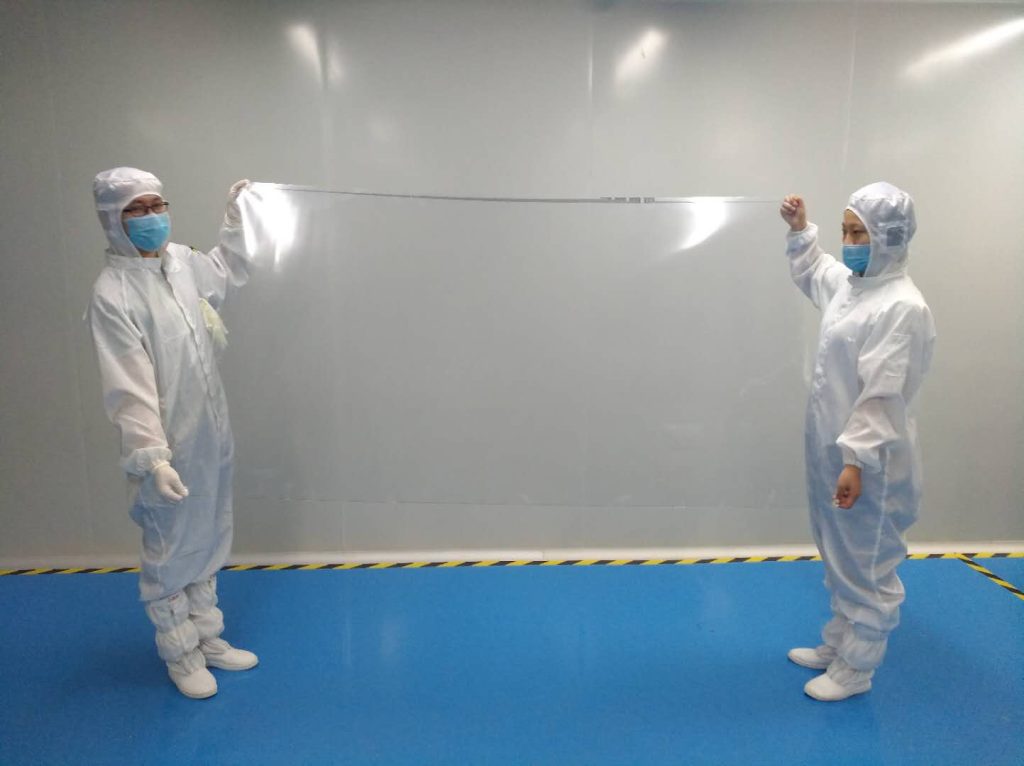

Capacitive touch panel manufacturers may be in substantial sizes (110 inches), and the cover lens can be customized with various colours, shapes, and holes to give consumers a variety of patterns.

Conclusion:

The efficiency of a capacitive touch panel varies depending on factors such as coating thickness, finger pressure, and so on. As a result, it can only be determined after testing. The Micron provides capacitive touch panel manufacturer is at the forefront of the development of capacitive touch panels with specific coatings. They are produced for a wide range of applications in industries such as healthcare, education, corporations, banking, and research. This is the best choice. Your satisfaction is our priority. Purchases and orders now.
