How Transparent Antennas Turn Building Glass into 5G Base Stations?

With the rapid development of 5G communication technology, cities are increasingly demanding wider and more stable signal coverage. However, traditional antennas—due to their large size, unsightly appearance, and limited installation locations—cannot meet the modern urban requirements of both aesthetics and functionality.

Imagine a city where buildings are no longer just piles of concrete and steel, but instead transform into high-tech “transparent base stations”! This might sound like something out of a science fiction movie, but transparent antenna technology is making this idea a reality. Sounds pretty cool, doesn’t it? Today, we will discuss this “cutting-edge” technology.





The Problem with Traditional 5G Base Stations

Many have noticed that although 5G networks provide faster speeds, the signal is often not as stable. This is especially true in places like high-rise buildings and underground parking lots. The reason is that 5G uses frequency bands much higher than 4G. While this brings faster speeds, its ability to penetrate obstacles such as walls and glass is significantly reduced, leading to greater signal loss.

This is the core challenge of 5G: short transmission distance and weak penetration, making full coverage difficult to achieve. The traditional solution has been to add more base stations, but this not only greatly increases construction costs, but also makes it hard to find suitable instal



What is a Transparent Antenna?

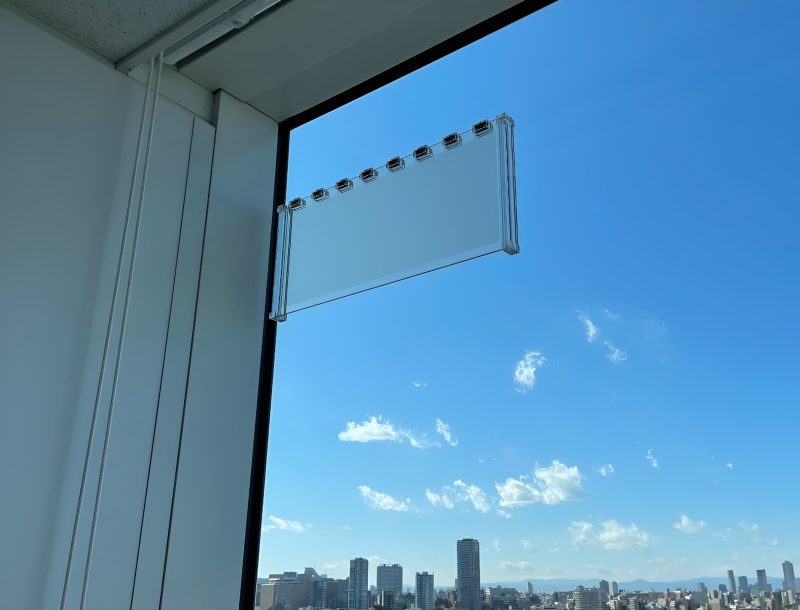

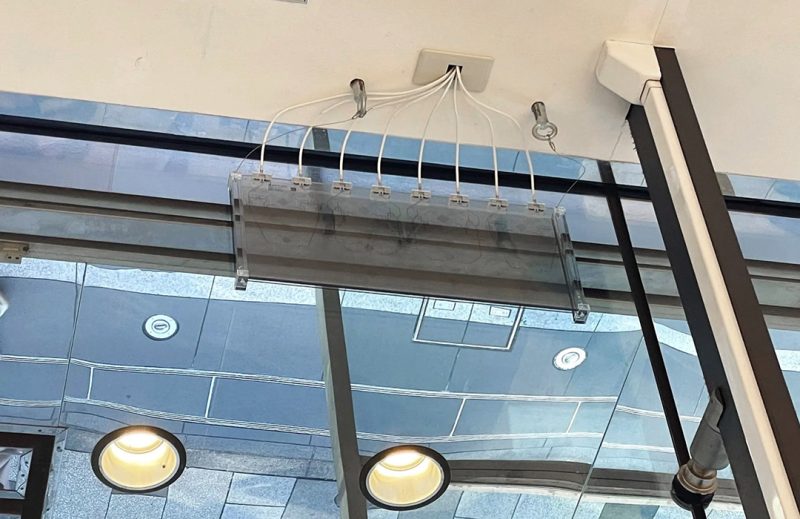

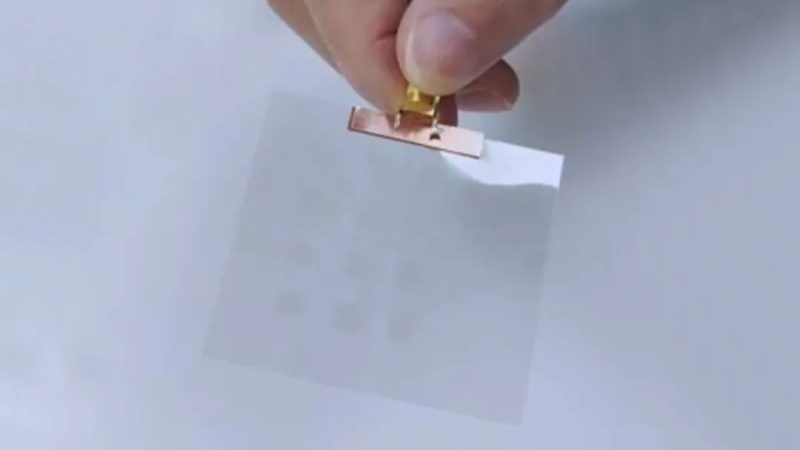

Transparent antennas represent a new direction in the field of antennas. They are made of transparent conductive materials combined with a transparent dielectric substrate, giving them high light transmittance. With the development of high-performance transparent film technology, it is now possible to create antennas that are almost “invisible.” These antennas can not only be hidden in places such as windows, displays, and vehicles, but can also be molded into 3D shapes without any compromise on performance. By embedding such transparent antennas into glass, the glass facade of a building can serve as a 5G base station and network access point.





Like traditional antennas, transparent antennas have a ground layer, a substrate, and a radiating patch layer. The substrate can be made from conventional rigid materials such as glass, quartz, acrylic, or sapphire, or from flexible materials such as PEN, PDMS, nylon, PI, and PET. The radiating patch is generally made using conductive films or metal grids.

Antennas designed with thin films (such as ITO) have the advantages of easy accessibility, high conductivity, and high light transmittance. However, their main drawback is the high cost. On the other hand, antennas based on metal grid technology offer several advantages, including simpler manufacturing, lower cost, and high conductivity. Although reducing the grid size can improve conductivity, it comes at the expense of lower light transmittance.

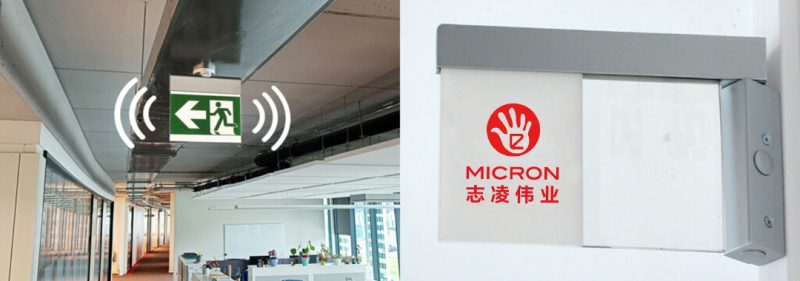

Besides being integrated into the glass exteriors of buildings, transparent antennas can also be cleverly disguised as wall-mounted or ceiling panels within the building’s signage system. This disguise prevents the unsightly appearance of separate plastic antenna boxes in indoor spaces. This solution not only preserves aesthetics but also enhances signal coverage.



Benefits of Transparent Antennas

Wider Signal Coverage

When every window becomes a signal booster for 5G, you can enjoy full signal coverage whether you are in a parking garage or any corner of a room. This technology is especially useful for large offices and shopping malls, as it not only improves signal quality but also saves the hassle of installing traditional base stations.



Reduced Base Station Construction Costs

With the widespread adoption of 5G, the number of base stations in cities has increased significantly. The construction and maintenance of each base station represent a sizable expense. The advent of transparent antennas can greatly enhance 5G signal coverage without the need to add more base stations. This is particularly valuable for high-rise buildings where installing traditional base stations is difficult.



Eco-Friendly and Energy Efficient

Compared to traditional base stations, transparent antennas consume much less energy. They do not require large amounts of power to operate—only a small amount of energy is needed. This not only reduces energy consumption but also lowers the density of 5G base stations, thus preventing excessive damage to the urban environment.



The Breakthrough by Micron

Micron has made breakthrough progress in the field of transparent antennas, further advancing the development of invisible base station technology. Our copper metal mesh transparent antenna technology not only offers high transmittance and excellent conductivity but also exhibits outstanding durability and adaptability. Some key features of Zhiling Weiye’s transparent antennas include:



• High Transmittance: The advanced transparent conductive materials used ensure that when the antenna is installed on surfaces like glass or display screens, the light transmittance is not affected.
• High Conductivity: The transparent antennas have excellent conductivity, capable of supporting high frequency and high bandwidth requirements, even for future 6G communications.
• Durability: They have good weather resistance and durability, ensuring stable operation under various environmental conditions.
• Adaptability: The transparent antenna technology can be customized based on different application scenarios to meet diverse needs.





Will This Technology Replace Traditional Base Stations?

At present, glass transparent antennas will not completely replace traditional 5G base stations. Instead, they act as an “assistant” to the base stations by strengthening coverage in weak signal areas. For example, in high-rise buildings, shopping malls, subway stations, and underground parking lots, these glass antennas can effectively solve dead spot issues. In outdoor areas or places with lower signal requirements, traditional base stations will still remain an indispensable part of the infrastructure.



However, in the long run, as transparent antenna technology continues to improve, we may see more buildings enhancing network performance in this way. Imagine a future smart city network where every glass window on high-rise buildings is part of the 5G network, continuously transmitting signals efficiently.



More Applications of Transparent Antennas

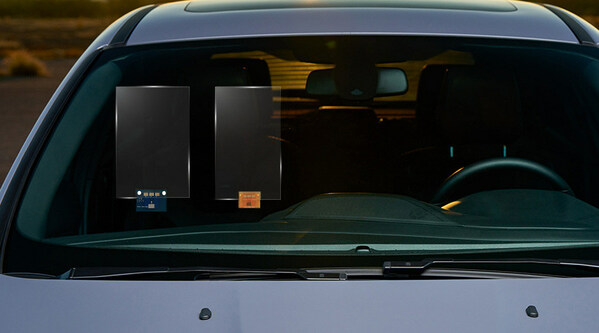

Smart Cars
Transparent antennas can be embedded in car windshields or sunroofs to support in-car networks, GPS navigation, and autonomous driving. This integration means that the vehicle’s exterior design is not compromised by traditional external antennas, while still providing high-efficiency data transmission in high-speed or complex road conditions. This enhances driving safety and the overall driving experience.





Smartphones
In smartphones, tablets, and other portable devices, transparent antennas can be integrated into the display or outer glass. This design not only saves internal space and reduces the thickness of the device, but also maintains an attractive appearance while achieving multi-frequency wireless signal transmission.

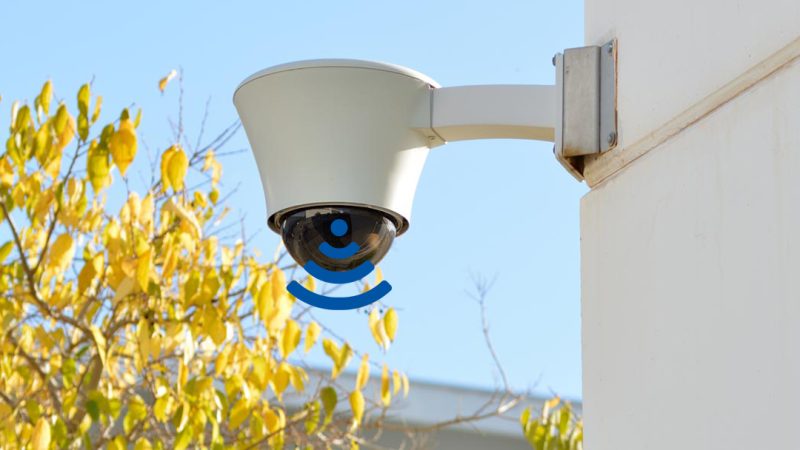

Security Surveillance Cameras
Transparent antennas can be embedded in the glass components of surveillance cameras, which allows for concealed integration and efficient wireless signal transmission. This effectively addresses the issues related to installing traditional external antennas and ensures stable data connections in both outdoor and complex environments, thereby improving overall system performance and reliability.





AR Glasses and Other Wearable Devices
In the field of augmented reality, reliable wireless connectivity is needed for the interaction between the real world and digital content. By integrating transparent antennas into AR glasses, devices can support Wi-Fi, Bluetooth, and mobile networks. This ensures that, while keeping the device light and maintaining a sleek appearance, they meet the requirements for low latency and high-quality data transmission.





The Future of Antenna Technology

The examples above are only the tip of the iceberg when it comes to innovative applications. The market for transparent antennas is vibrant and continuously growing within the electronics and communication industries. With ongoing technological advancements and the emergence of new materials, the range of applications for transparent antennas will continue to expand—from base station antennas to wearable devices, smart gadgets, navigation systems, and emerging smart city projects. Transparent antennas are set to continuously reveal their immense potential.
