Enhancing Display Performance With Optical Bonding Services

Optical bonding services have become increasingly popular in recent years due to the numerous benefits they offer to enhance the performance of display devices. This advanced technology is essential for various industries, including automotive, aerospace, medical, and consumer electronics.

What Is Optical Bonding?

Optical bonding is a process that involves adhering a cover glass or touchscreen to a display panel using a special adhesive. This adhesive fills the gap between the glass and the display, eliminating the air gap that is typically present in traditional display assemblies.

By eliminating the air gap, optical bonding helps to improve the overall performance, durability, and appearance of the display device.

As a top R&D and manufacturer of capacitive touch technology in China, Micron can provide customers with a variety of optical bonding services:

• Soft-to-Soft Lamination (FF).
• Soft-to-Hard Lamination (GFF).
• Hard-to-Hard Zero Lamination (TP+OC).
• Hard-to-Hard Full Lamination (TP+OC).

How Does Optical Bonding Services Enhance Display Performance?

As mentioned above, Micron provides customers with many optical bonding services, which improves the performance of the display. But does optical bonding improve the user’s viewing and touching experience? How does it do it?

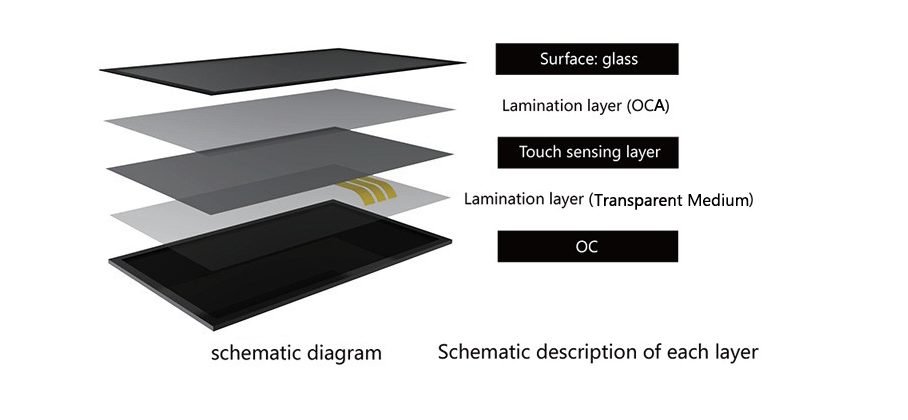

The following is an example of Micron’s optical bonding services: Hard-to-Hard Zero Lamination (TP+OC) service

Improved Viewing Experience:

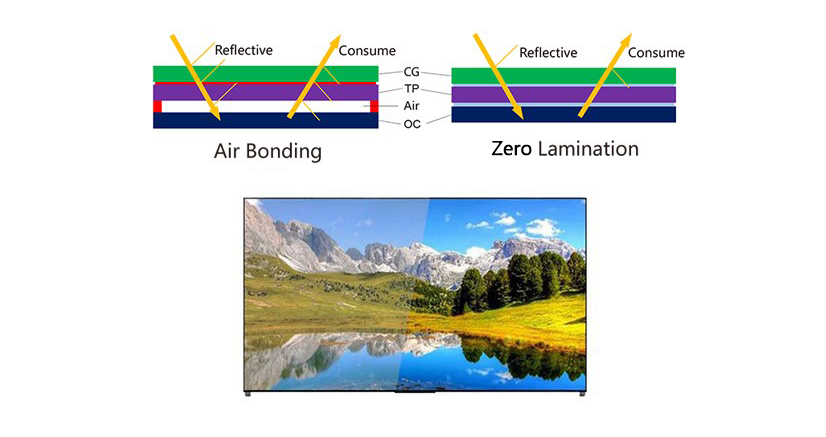

Optical bonding services, such as Micron’s Hard-to-Hard Zero Lamination (TP+OC), significantly enhance the display performance by filling the gap between the touch panel (TP) and the display panel (OC) with a non-adhesive transparent medium that has a refractive index similar to glass.

This method eliminates the air gap, resulting in a larger viewing angle and a better overall user experience. With a light transmission rate of over 93%, the display appears brighter and more vivid.

Easy Assembly and Maintenance:

One of the advantages of the Hard-to-Hard Zero Lamination (TP+OC) optical bonding services is that it simplifies assembly and maintenance.

Since there is no adhesive between the TP and OC layers, the process becomes more straightforward and cost-effective. This also allows for a higher production yield, reducing overall costs.

Superior Optical Performance and Ultra-Thin Design:

Compared to traditional bonding techniques, such as frame bonding, Micron’s Hard-to-Hard Zero Lamination (TP+OC) offers superior optical display performance and an ultra-thin appearance.

By eliminating the air gap between the touch panel and the display, this method improves the display’s visual quality, reduces reflections, and enables a sleeker, thinner design.

Benefits Of Optical Bonding Services Provided By Micron:

Enhanced Visibility and Contrast:

One of the most significant benefits of optical bonding is the improved visibility and contrast it provides. The adhesive used in optical bonding services reduces internal reflections caused by the air gap, which typically results in washed-out colors and lower contrast.

With optical bonding services, displays exhibit deeper blacks, more vibrant colors, and better overall image quality.

Improved Durability and Reliability:

Optical bonding services enhance the durability and reliability of display devices by providing additional protection against environmental factors such as dust, moisture, and extreme temperatures.

The adhesive layer also strengthens the display, making it more resistant to shock, vibration, and impact damage. This is particularly beneficial for devices used in harsh environments, such as industrial applications.

Reduced Parallax Effect:

The parallax effect occurs when the perceived position of an object on a display changes due to the viewer’s angle of observation. This effect can be distracting and may cause difficulty in accurately selecting on-screen elements, especially in touchscreen devices.

Optical bonding services reduce the parallax effect by eliminating the air gap between the cover glass and the display panel, resulting in a more accurate and user-friendly touch experience.

Enhanced Sunlight Readability:

Displays used in outdoor or bright environments often suffer from poor visibility due to sunlight reflecting off the screen.

Optical bonding services minimize these reflections by reducing the number of reflective surfaces in the display assembly, resulting in better readability under direct sunlight or bright ambient lighting.

Condensation and Fogging Prevention:

In traditional display assemblies, the air gap between the cover glass and the display panel can lead to condensation and fogging, particularly in environments with high humidity or rapid temperature changes.

Optical bonding services eliminate this issue by filling the gap with an adhesive layer, preventing moisture from entering the display and maintaining clear visibility.

Real-World Applications Of Optical Bonding Services:

Although optical bonding services are often applied to high-end smartphones or displays. However, for Micron, providing large-scale customized optical bonding services is its strong point.

Automotive Industry:

In the automotive industry, optical bonding is used to enhance the performance of in-vehicle displays such as infotainment systems, instrument clusters, and head-up displays (HUDs).

The improved visibility, durability, and sunlight readability provided by optical bonding is critical for ensuring driver safety and enhancing the overall driving experience.

Aerospace and Defense:

Optical bonding services are essential for aerospace applications, where displays are often exposed to harsh environments and must maintain reliable performance. Examples include cockpit displays in aircraft and ruggedized tablets for field operations.

Optical bonding ensures that these displays remain clear and functional even under extreme conditions, such as high altitudes, temperature fluctuations, and vibration.

Medical Devices:

Medical devices, such as patient monitors, diagnostic equipment, and surgical displays, require high levels of precision and reliability.

Optical bonding services enhance the performance of these devices by providing improved image quality, accurate touch response, and resistance to contaminants, such as dust and liquids. This contributes to more accurate diagnosis and treatment, ultimately improving patient outcomes.

Final words:

Optical bonding services have become an essential aspect of display technology, providing numerous benefits that enhance the performance, durability, and user experience of various devices.

Industries such as automotive, aerospace, medical, industrial, and consumer electronics have embraced optical bonding to improve their products’ overall quality and reliability.

With superior optical performance and an ultra-thin design, devices using Micron’s Hard-to-Hard Zero Lamination (TP+OC) service stand out in the market, offering users a more enjoyable and immersive viewing and touch experience.
