Soft-to-Hard Lamination（GFF）

Material Characteristics

OCA is a kind of PSA (Pressure Sensitive Adhesive), which is a highly transparent optical adhesive and a pressure sensitive adhesive with a transmittance >99%.
The main factors affecting the paste effect are: surface roughness, surface contamination (grease, cleaning agent, water, dust, fibers, etc.), bonding time, pressure, temperature, etc.
The upper and lower protective films of the colloid are called release liner. When using, you must first tear off the light release layer and then paste an object, and then tear off the heavy release layer and paste it on another object.
The weight of the release (or release force), the force required to tear off the release layer (under unit length),Of the two sides of the OCA, the one with the larger release force is the heavy release.
OCA film characteristics: good light transmittance (above 90%), good temperature resistance; excellent heat resistance, weather resistance, and good processability.
The touch screen glass is mainly chemically strengthened glass, and its glass material is a special sodium silicate glass material, which improves its own strength through sodium-potassium ion exchange to achieve the purpose of glass strengthening, and the impact resistance and surface hardness are significantly improved.

Lamination Method

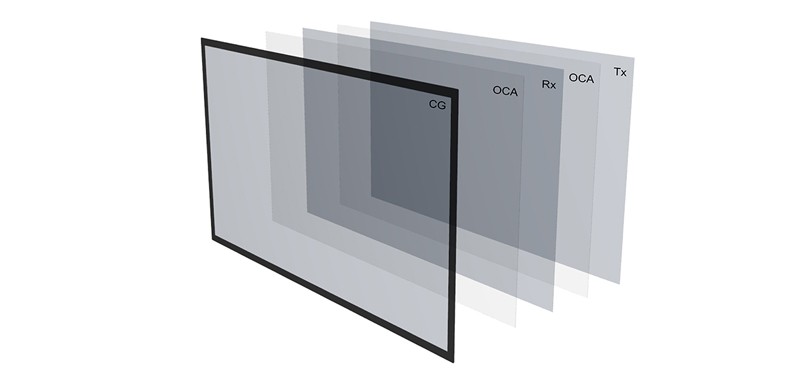

For example, our products use the metal grid GFF bonding method, the surface is glass, and the bottom is optical glue + Rx electrode and optical glue + Tx electrode.

Customization

After years of precipitation and accumulation, our company has complete equipment, mature technology, and a complete R&D and production system to provide customers with overall solutions.
According to the design plan and requirements, we provide personalized customized fitting services. We always adhere to the customer-oriented approach and tailor-made the best solution for customer needs.
